FOKS (Federated Open Key Service) is in beta. Current functionality provided is:
- End-to-End Post-Quantum Encrypted Git Hosting
- End-to-End Post-Quantum Encrypted Key-Value Store
- Federated and Generalized Team Management
- Device Management with Full YubiKey Support
See Foks.pub for a more detailed overview of FOKS.
For this journey, I'm primarily interested in the Key-Value Store feature and integrating it's usage into my daily routine. So far I've accomplished the following:
- FoksApi a powershell script executing FOKS kv cli commands
- PSFoks a powershell module executing FOKS kv cli commands
- Foks-Explorer a web interface with integration to the FOKS Key-Value Store
There is a FOKS User Guide documentation in the works called Foks Book where others are contributing their knowledge on the usage of FOKS.
The remainder of the document outlines the integration work I've performed using FOKS on Linux with PowerShell.
Installation & Setup of FOKS
Initial Installation of FOKS
$ curl -fsSL https://pkgs.foks.pub/install.sh | sh
This will install both the FOKS binary and the FOKS agent.
PS> foks ctl status
foks agent is in state: active running
PS> which foks
/usr/bin/foks
PS> Get-Process -Name foks
NPM(K) PM(M) WS(M) CPU(s) Id SI ProcessName
------ ----- ----- ------ -- -- -----------
0 37.25 34.20 40.25 3665 …65 foks
PS> Get-Command foks
CommandType Name Version Source
----------- ---- ------- ------
Application foks 0.0.0.0 /usr/bin/foks
logs are located here: $HOME/.cache/foks
For subsequent installs/updates
$ apt-get install foks
FOKS signup
The signup process is for gaining access to the hosting service foks.app.
Choose the foks.app home server in the signup process. If a invite code is requested use: cczjho9r
PS> foks signup
To upgrade to a paid hosting plan. The following command will generate a URL for accessing the FOKS Web Admin Panel.
PS> foks admin web
FOKS Command Line Basics
For a overview of all the commands.
PS> foks --help
For the FOKS Key-Value Store commands, one is dealing with a structure that is nearly identical to that of dealing with file systems.
All Key/Value paths start with the root path / and the last node or value in the path is called the Key.
For instance, /mynode/tom/api, api is the key to the associated value assigned to it. The simplest command to create this keypath is:
PS> foks kv put /mynode/tom/api apivalue -p --force
The keypath is /mynode/tom/api where api is the key and apivalue is the value assigned to the key.
The -p flag will create all missing names in the path if needed and –force flag will overwrite that keypath if it already exists.
To retrieve the value in this keypath:
PS> foks kv get /mynode/tom/api
apivalue
To list all existing kv paths.
PS> foks kv ls /
Adding a second device
The same KV store data can be accessed from multiple devices (computers), if desired
On the new device, install FOKS.
-
On the original device that FOKS was installed on.
PS> foks key assist
This prints passphrase to the console. Leave this console up until the new device has been associated to your FOKS account.
-
On the new device:
PS> foks key new Select a server, enter username, enter device name. this also prints a passphrase, leave it on the screen
Now on either device, type in the passphrase from the other device.
Once this process has been completed both devices will now have access to the same KV store data.
Setting up a passphrase
To control access to your FOKS KV store data, one can create a passphrase.
PS> foks passphrase --help
Available Commands:
change change passphrase
set set a new passphrase
unlock unlock local credentials with a passphrase
PS> foks passphrase set
IF YOU FORGET OR LOSE YOUR PASSPHRASE YOUR DATA IS LOST!!
To lock access to your FOKS KV store data
PS> foks key lock
To unlock
PS> foks passphrase unlock
Git Operations
Another extremely useful feature of FOKS is Encrypted Git Hosting.
For the powershell work I've done so far in testing FOKS, I've created a git repository.
Created a FOKS team foks_apps
PS> foks team create foks_apps
Create a git repository
PS> foks git create FoksApi --team foks_apps
Created: foks://foks.app/t:foks_apps/foksapi
Anyone who is a member of the foks_apps team has access to this repository.
Team invite code is
YcarI5JTMATAp1tJ4E5RIM5QgKVyeJ0HGsMgB9HRXNrVnXlrlcUcDH9nDkQR7QomaTpSqhU0Veue
Dw2w0zC7uK5jlsI61PcVSCanF
To setup the local git repository on my system, I did the following.
PS> cd $HOME
PS> mkdir git-foks
PS> cd git-foks
PS> git clone foks://foks.app/t:foks_apps/foksapi
Now with any coding work being done with VScode, it can be committed to the git repository as needed.
IMPORTANT REMINDER THIS SOFTWARE IS IN BETA TESTING LIMIT YOUR USAGE TO TEST
Installing PowerShell on Linux
PowerShell Installation
# Update the list of packages
sudo apt-get update
# Install pre-requisite packages.
sudo apt-get install -y wget apt-transport-https software-properties-common
# Get the version of Ubuntu
source /etc/os-release
# Download the Microsoft repository keys
wget -q https://packages.microsoft.com/config/ubuntu/$VERSION_ID/packages-microsoftprod.deb
# Register the Microsoft repository keys
sudo dpkg -i packages-microsoft-prod.deb
# Delete the Microsoft repository keys file
rm packages-microsoft-prod.deb
# Update the list of packages after we added packages.microsoft.com
sudo apt-get update
# Install PowerShell
sudo apt-get install -y powershell
Start PowerShell
pwsh
Install Gpaste for clipboard functionality on Linux
sudo apt install xclip xsel
sudo apt install gpaste
At the time I decided to migrate to Linux from Windows, I had a large time investment in learning PowerShell so I decided to give PowerShell a try on Linux. Now after several years of predominately using Linux, I almost exclusively find myself using the PowerShell environment.
For me, one of the big attractions to using PowerShell is that the same code it will run on Linux, MacOS, and Window. One does need to code PowerShell in a OS neutral manner for this to work
FoksApi Overview
The primary focus is to provide programmatic access to the key/value store functionality implemented by FOKS. Currently, the foks command line interface is being used with the thought of migrating to a REST Api as some future date.
To follow the examples below, you'll a working version of FOKS and PowerShell installed. The script has been develop and tested on Linux in an OS neutral manner so should be working on all OSes.
FoksApi Operations
KeyPaths - Generate a list of current key/value pairs
FindPaths - List keys matching search expression
Create - Create a key/value pair
Get - Copy the value of a key/value pair to the clipboard
Update - Update a key/value pair with a new value
Remove - Remove a key/value pair
Lock - Require a passphrase to unlock FOKS
Usage - Display Server Usage Info
passPhrase - Set, Change, or Unlock the passphrase
SetRandomValue - Random 20 char passphrase created in the clipboard
Usage - Display Server Usage Inf
Creating a KV Entry
PS> FoksApi Create /myfirst/love dontkissandtell
Created /myfirst/love/
By default the last item name in the path is the key. If it is desired to have a different key name associated with the path, then the -kvkey parameter can be used.
PS> FoksApi Create -kvpath /myfirst -kvalue dontkissandtell -kvkey love
This command is yeilds the same results as the prior example.
If the value has embedded spaces or characters that need to be escaped, then the value should be in single quotation marks.
Updating a KV Entry
PS> FoksApi Update /myfirst/love Traci
Updated /myfirst/love/
Lets update the value with a 20 character randomized value
PS> FoksApi Update /myfirst/love SetRandomValue
Updated /myfirst/love/
Get a KV value
PS> FoksApi Get /myfirst/love
The associated value is copied to the clipboard.
List KV Entries
Once one has a large collection of key/value pairs, there is easy way to list your key/value entries.
PS> FoksApi KeyPaths
$HOME/FoksPaths.txt new file created
The file generated is a dump of all the current key/value pairs.
To list all key/value pairs to the console.
PS> FoksApi FindPaths
To search for specific paths
PS> FoksApi FindPaths myfirst
/myfirst/love
Securing the FOKS implementation
Once the FOKS system is no longer being actively used, it is wise to lock down FOKS with a passPhrase to keep it secure.
Set a passphrase for FOKS. Note the example below is using the foks cli.
PS> foks passphrase set
DON'T LOSE YOUR PASSPHRASE
A secure passphrase can be generated as follows:
PS> FoksApi SetRandomValue
The generated random value is copied to the clipboard.
Enter the following command to lock the FOKS implementation.
PS> FoksApi Lock
On each execution of FoksApi, it will check if FOKS is locked and prompt for a passphrase to unlock.
PSFoks Module Overview
A PowerShell 7 module implementing FOKS KV store functionality to support a Web interface called, Foks-Explorer.
This module is functional on either Windows, Linux, or MacOS operating systems where PowerShell 7 is supported.
Installation of PSFoks
Copy the PSFoks directory to the default module installation location on your OS. On Linux, this location is $HOME/.local/share/powershell/modules
PSFoks Function Overview
PS> Get-Command -module PKFoks
This command will provide the following output.
CommandType Name Version Source
----------- ---- ------- ------
Alias Foks-Bye 0.0.1 PSFoks
Alias Foks-ConsoleLog 0.0.1 PSFoks
Function Add-FoksKeyValue 0.0.1 PSFoks
Function Clear-FoksConsole 0.0.1 PSFoks
Function Edit-FoksKeyValue 0.0.1 PSFoks
Function Get-FoksConsole 0.0.1 PSFoks
Function Get-FoksKeyValue 0.0.1 PSFoks
Function Get-FoksModKeyPaths 0.0.1 PSFoks
Function Remove-FoksKeyValue 0.0.1 PSFoks
Function Set-FoksPassPhrase 0.0.1 PSFoks
To get help on individual functions within PSFoks.
PS> Get-Help Get-FoksModKeyPath -full
FOKS-Explorer Overview
FOKS-Explorer is a Web site that is hosted on a local a computer that supports the key-value store features implemented by FOKS.
The Web site is built using Pode.web which allows one to build web pages purely with PowerShell - no HTML, CSS, or JavaScript knowledge required.

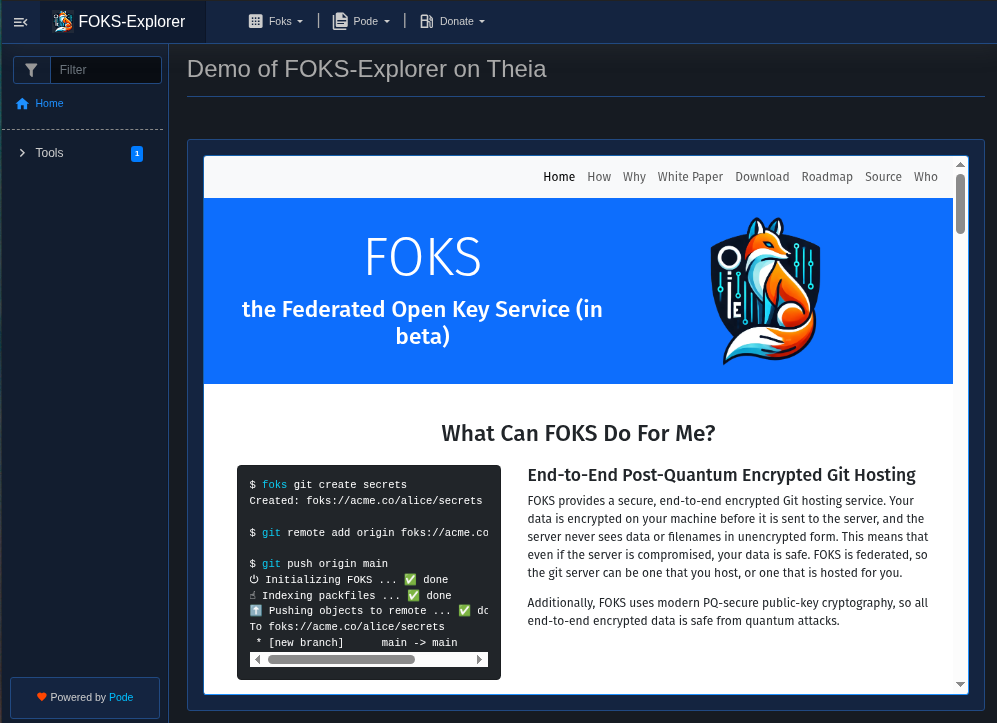

FOKS-Explorer Home
The home page appears as follows.
FOKS-Explorer
Selecting FOKS-Explorer from the Tools drop down in the navigation panel displays.

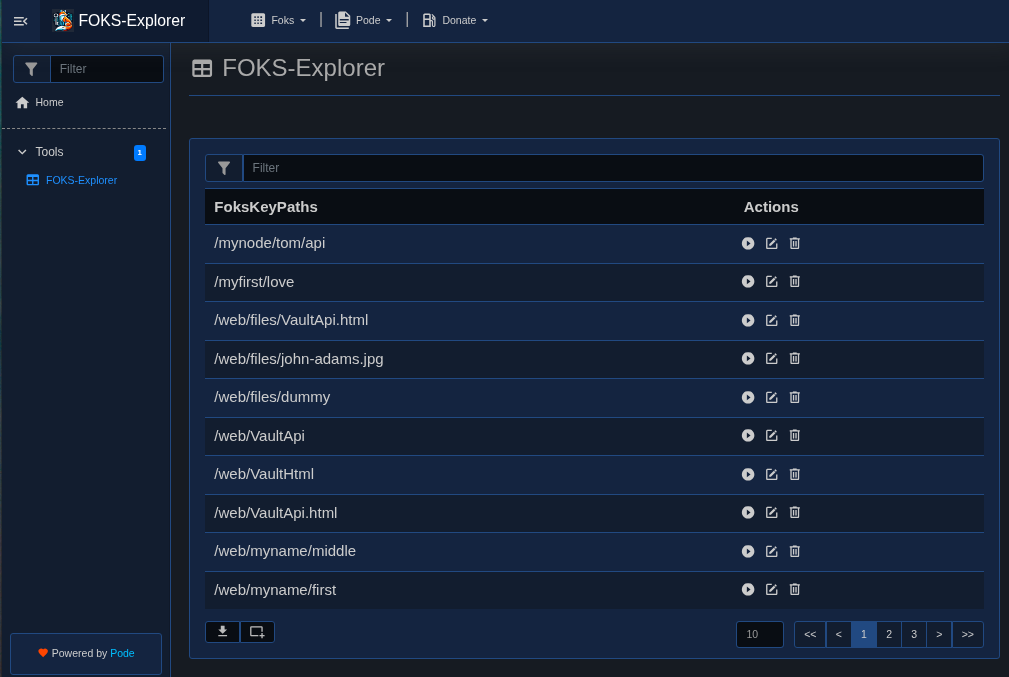

FOKS-Explorer Overview
At the top of web page is a Filter icon, that is used to limit the key-value paths to be displayed below. By default, all key-value paths are displayed.
Each row lists a key-value path where the last item in the path is the Key followed by 3 icons.
Click on the
play icon to copy the value of the key to the clipboard.
Clinking on the
edit icon provides a menu for changing the value of the key.
Clicking on the
trash icon deletes the key and value from FOKS.
At the bottom left of the table is an
export icon and
for adding new key-value entries.
When adding new entries, the default for value is set to SetRandomValue. If this value is not changed then a random 20 char string will be stored for the value.
At the bottom right of the page the controls
provide setting the number of rows to display and paging through the rows.
Software Requirements
The following is a list of software components required to support the FOKS-Explorer web site. PSFoks module needs to be installed as documented above. If using Linux, then gpaste needs to be installed as documented above for clipboard support.
Pode module
PS> Install-Module Pode
Pode.Web module
PS> Install-Module Pode.web
Microsoft.PowerShell.ConsoleGuiTools
PS> Install-Module Microsoft.PowerShell.ConsoleGuiTools
Install Foks-Explorer
Copy the Foks-Explorer directory to your home directory path $HOME/Foks-Explorer
Next the $HOME/Foks-Explorer path needs to be added to your system environment PATH variable.
The easiest way to do this is to update your powershell profile.
To find your default profile file:
PS> $profile
$HOME/.config/powershell/Microsoft.PowerShell_profile.ps1
Add the following line to your profile.
$env:PATH += ":$HOME/Foks-Explorer"
Starting Foks-Explorer
In a PowerShell console session enter:
Start-FoksExplorer
Checking if FOKS is Locked
Retrieving one-time password for Foks-Explorer
Starting Foks-Explorer Web Interface: foks-explorer.ps1
Listening on the following 1 endpoint(s) [1 thread(s)]:
- http://localhost:23007/
Configure Foks-Explorer
The configuration of Foks-Explorer can be changed by editing the file FOKS-Explorer.xml in the data directory.
<PodeWebCfg>
<title>FOKS-Explorer</title>
<address>localhost</address>
<port>23007</port>
<protocol>http</protocol>
<authenticate>0</authenticate>
<duration>60</duration>
<logo>/pode.web/images/foks.jpg</logo>
<logo1>/pode.web/images/DeatonCoatOfArms-1.jpg</logo1>
<background>/pode.web/images/Bow-Lightening.png</background>
</PodeWebCfg>
By default, the web interface doesn't require any authentication because
When
The authentication process implemented is a one-time password scheme using FOKS. An keypath entry of /apps/Foks-Explorer/<$env:USERNAME>/OTPW must be created for each user for authentication to succeed.
After successful authentication, the OTPW key is updated with a new random 20 character password.
When Start-FoksExplorer is ran, it will automatically copy the OTPW key value to the clipboard.
Get Foks-Explorer
Foks-Explorer, PSFoks Module, and FoksApi exist in a FOKS git respository, where team members in the team foks_apps have access.
Option 1:
To join the FOKS team, foks_app:
PS> $inviteCode =
"YcarI5JTMATAp1tJ4E5RIM5QgKVyeJ0HGsMgB9HRXNrVnXlrlcUcDH9nDkQR7QomaTpSqhU0Veu
eDw2w0zC7uK5jlsI61PcVSCanF"
PS> foks team accept $inviteCode
I or one of the team owners will need to respond with a foks team accept to accept your invitation.
If you are using Keybase then join the foks_book team to let me or someone know an invite is pending.
Option 2:
The Foks-Explorer git project is mirrored on GitHub
Option 3:
Buy me 2 cups of coffee at BarnYard Market using Bitcoin and download a zip file.
